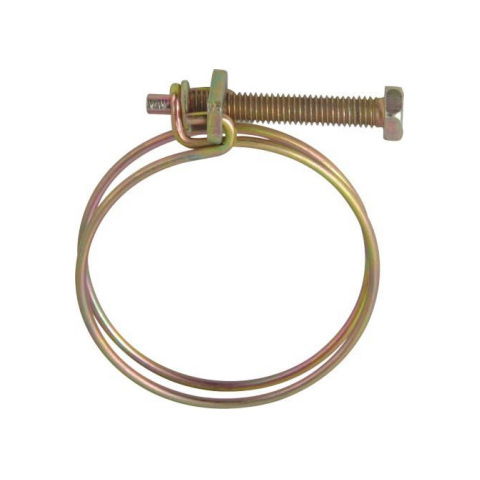

Double Wire Hose Clamp
| Item No | Range | Wire Width | Screw | ||
| MM | W1 | W4 | W1 | W4 | |
| FSHG014 | 11-14 | 1.5 | 2.0 | M5*30 | M6*30 |
| FSHG016 | 13-16 | 1.5 | 2.0 | M5*30 | M6*30 |
| FSHG018 | 15-18 | 1.5 | 2.0 | M5*30 | M6*30 |
| FSHG020 | 17-20 | 1.8 | 2.0 | M5*30 | M6*30 |
| FSHG022 | 19-22 | 1.8 | 2.0 | M5*30 | M6*30 |
| FSHG024 | 20-24 | 1.8 | 2.0 | M5*30 | M6*30 |
| FSHG026 | 22-26 | 1.8 | 2.0 | M5*30 | M6*30 |
| FSHG028 | 24-28 | 1.8 | 2.0 | M5*30 | M6*35 |
| FSHG030 | 26-30 | 2.2 | 2.0 | M6*40 | M6*35 |
| FSHG032 | 28-32 | 2.2 | 2.0 | M6*40 | M6*40 |
| FSHG035 | 31-35 | 2.2 | 2.0 | M6*40 | M6*40 |
| FSHG038 | 34-38 | 2.2 | 2.0 | M6*40 | M6*40 |
| FSHG040 | 35-40 | 2.2 | 2.0 | M6*40 | M6*40 |
| FSHG042 | 37-42 | 2.2 | 2.0 | M6*40 | M6*40 |
| FSHG045 | 40-45 | 2.2 | 2.0 | M6*40 | M6*40 |
| FSHG048 | 43-48 | 2.2 | 2.0 | M6*50 | M6*50 |
| FSHG050 | 45-50 | 2.2 | 2.3 | M6*50 | M6*50 |
| FSHG052 | 47-52 | 2.2 | 2.3 | M6*50 | M6*50 |
| FSHG055 | 50-55 | 2.2 | 2.3 | M6*50 | M6*50 |
| FSHG058 | 53-58 | 2.2 | 2.3 | M6*50 | M6*50 |
| FSHG060 | 55-60 | 2.2 | 2.3 | M6*60 | M6*50 |
| FSHG062 | 56-62 | 2.2 | 2.3 | M6*60 | M6*50 |
| FSHG065 | 60-65 | 2.2 | 2.3 | M6*60 | M6*50 |
| FSHG068 | 63-68 | 2.5 | 2.3 | M6*60 | M6*50 |
| FSHG070 | 65-70 | 2.5 | 2.3 | M6*70 | M6*50 |
| FSHG075 | 70-75 | 2.5 | 2.3 | M6*70 | M6*50 |
| FSHG080 | 75-80 | 2.5 | 2.3 | M6*70 | M6*50 |
| FSHG085 | 80-85 | 2.5 | 2.3 | M6*70 | M6*50 |
| FSHG090 | 84-90 | 2.5 | 2.3 | M6*70 | M6*50 |
| FSHG095 | 89-95 | 2.5 | 2.3 | M6*70 | M6*50 |
| FSHG100 | 94-100 | 2.5 | 2.3 | M8*80 | M6*50 |
| FSHG105 | 98-105 | 2.5 | 2.3 | M8*80 | M6*60 |
| FSHG110 | 103-110 | 2.5 | 2.3 | M8*80 | M6*60 |
| FSHG115 | 108-115 | 2.5 | 2.3 | M8*80 | M6*60 |
| FSHG120 | 113-120 | 2.5 | 2.3 | M8*80 | M6*60 |
W1: Band, housing and screw are all galvanized steel zinc planted
W4: Band, housing and screw are made of SS 304
