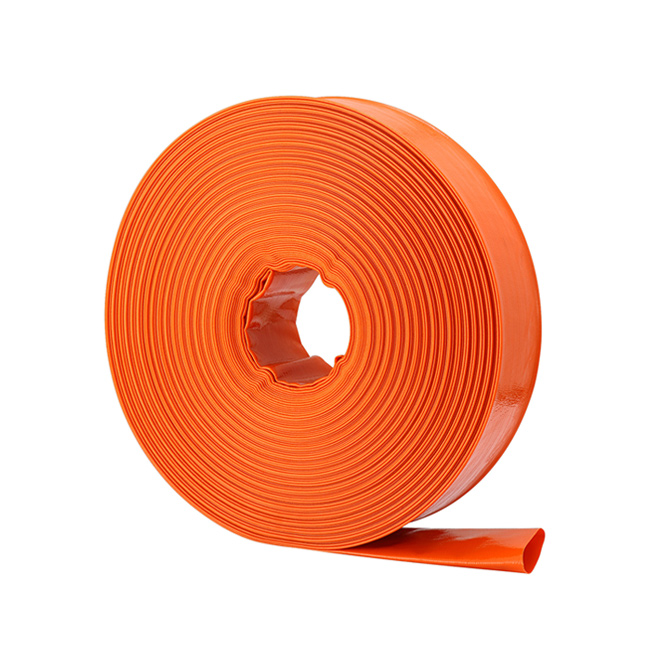

PVC Lay Flat Hose-Light Duty
Construction: Blue or any other color pvc layer, Anti Abrasion And UV resistant
Reinforcement: Polyester Yarn
Usage: Low Pressure Water Delievery
Safety Factor: 3:1
Temperature: -10℃ To 40℃
Reinforcement: Polyester Yarn
Usage: Low Pressure Water Delievery
Safety Factor: 3:1
Temperature: -10℃ To 40℃
| Part No | Size | Work Pressure | Burst Pressure | Weight | Length | |||
| mm | inch | bar | psi | bar | psi | kg/m | meters/roll | |
| FSLF012025 | 25 | 1" | 2 | 30 | 6 | 90 | 0.12 | 30/50/90/100 |
| FSLF012032 | 32 | 1 1/4" | 2 | 30 | 6 | 90 | 0.15 | 30/50/90/100 |
| FSLF012038 | 38 | 1 1/2" | 2 | 30 | 6 | 90 | 0.18 | 30/50/90/100 |
| FSLF012051 | 51 | 2" | 2 | 30 | 6 | 90 | 0.22 | 30/50/90/100 |
| FSLF012064 | 64 | 2 1/2" | 2 | 30 | 6 | 90 | 0.30 | 30/50/90/100 |
| FSLF012076 | 76 | 3" | 2 | 30 | 6 | 90 | 0.36 | 30/50/90/100 |
| FSLF012102 | 102 | 4" | 2 | 30 | 6 | 90 | 0.48 | 30/50/90/100 |
| FSLF012127 | 127 | 5" | 2 | 30 | 6 | 90 | 0.65 | 30/50/90/100 |
| FSLF012152 | 152 | 6" | 2 | 30 | 6 | 90 | 0.85 | 30/50/90/100 |
| FSLF012204 | 204 | 8" | 2 | 30 | 6 | 90 | 1.50 | 30/50/90/100 |
