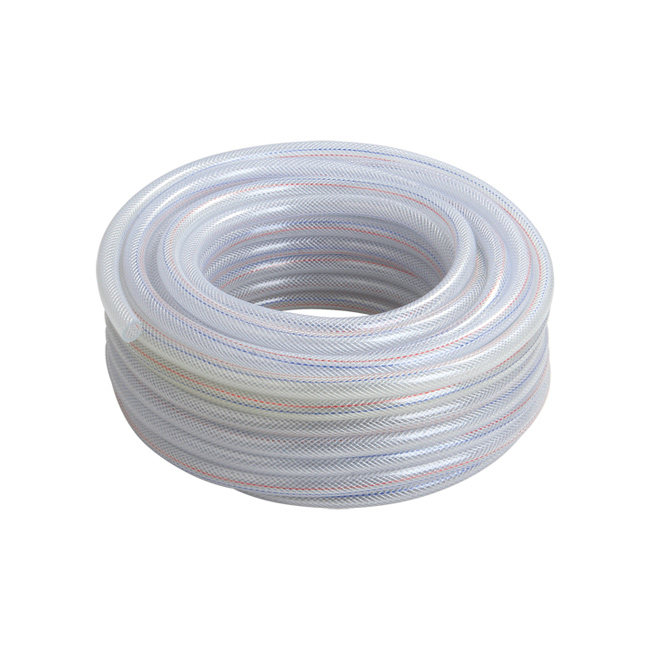

Food Grade PVC Braided Hose
Construction: Transparent PVC Layer, Anti Abrasion And UV resistant
Reinforcement: Polyester Yarn
Usage: Food, Milk, Powder, Beverage Production
Safety Factor: 3:1
Temperature: -10℃ To 40℃
Certificate: FDA
Reinforcement: Polyester Yarn
Usage: Food, Milk, Powder, Beverage Production
Safety Factor: 3:1
Temperature: -10℃ To 40℃
Certificate: FDA
| Part No | Size | Inner Diameter | Outer Diameter | Thickness | Work Pressure | Length | |
| inch | mm | mm | mm | bar | psi | meters/roll | |
| FDBS008 | 5/16" | 8 | 13 | 2.5 | 8 | 120 | 15/20/30/50/100 |
| FDBS010 | 3/8" | 10 | 12 | 2.5 | 8 | 120 | 15/20/30/50/100 |
| FDBS012 | 1/2" | 12 | 18 | 3.0 | 7 | 105 | 15/20/30/50/100 |
| FDBS016 | 5/8" | 16 | 22 | 3.0 | 7 | 105 | 15/20/30/50 |
| FDBS019 | 3/4" | 19 | 25 | 3.0 | 6 | 90 | 15/20/30/50 |
| FDBS025 | 1" | 25 | 32 | 3.5 | 6 | 90 | 15/20/30/50 |
| FDBS032 | 1 1/4" | 32 | 40 | 4.0 | 5 | 60 | 15/20/30/50 |
| FDBS038 | 1 1/2" | 38 | 46 | 4.0 | 5 | 60 | 15/20/30/50 |
