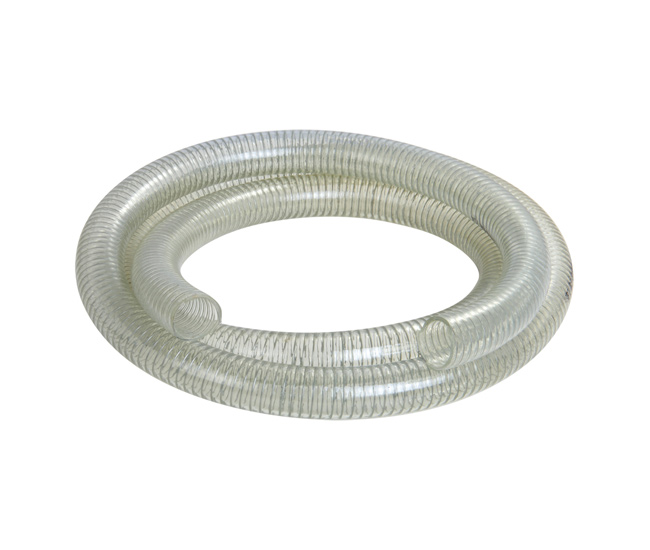

Food Grade PVC Steel Spiral Hose
Construction: Transparent PVC Tube, Anti Abrasion And UV resistant
Reinforcement: Steel Wire Spiral In Middle
Usage: Food, Milk, Powder, Beverage Production
Safety Factor: 3:1
Temperature: -10℃ To 40℃
Certificate: FDA
Certificate:FDA
Reinforcement: Steel Wire Spiral In Middle
Usage: Food, Milk, Powder, Beverage Production
Safety Factor: 3:1
Temperature: -10℃ To 40℃
Certificate: FDA
Certificate:FDA
| Part No | Size | Inner Diameter | Outer Diameter | Thickness | Weight | Work Pressure | Length | |
| inch | mm | mm | mm | kg/m | bar | psi | meters/roll | |
| FDRS019 | 3/4" | 19 | 25 | 3.0 | 0.32 | 7 | 105 | 15/20/30/50/100 |
| FDRS025 | 1" | 25 | 32 | 3.5 | 0.50 | 6 | 90 | 15/20/30/50/100 |
| FDRS032 | 1 1/4" | 32 | 40 | 4.0 | 0.70 | 6 | 90 | 15/20/30/50/100 |
| FDRS038 | 1 1/2" | 38 | 46 | 4.0 | 0.80 | 5 | 75 | 15/20/30/50 |
| FDRS051 | 2" | 51 | 61 | 5.0 | 1.40 | 5 | 75 | 15/20/30/50/100 |
| FDRS064 | 2 1/2" | 64 | 74 | 5.0 | 1.80 | 5 | 75 | 15/20/30/50 |
| FDRS076 | 3" | 76 | 88 | 6.0 | 2.30 | 4 | 60 | 15/20/30/50 |
| FDRS102 | 4" | 102 | 116 | 7.0 | 4.00 | 4 | 60 | 15/20/30 |
