PVC Air Spray Hose
Current Position - Farsion - Products - PVC Air Spray Hose

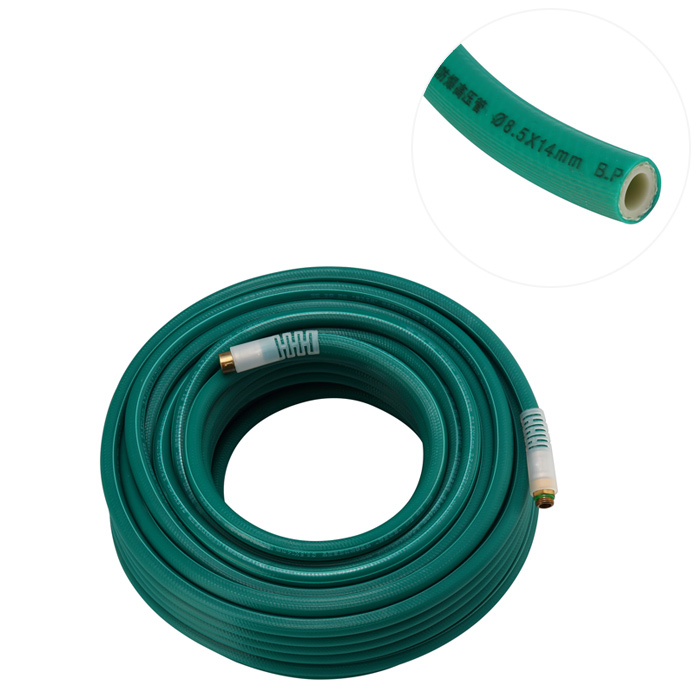

PVC High Pressure Spray Hose-5Plys
Construction: Two White Inner PVC Layer And Green Outer PVC Layer
Reinforcement: Polyester Yarn
Usage: High Pressure Air Sprayer, Air Compressor, Pneumatic Tools And Painting
Safety Factor: 3:1
Temperature: -10℃ To 40℃
Reinforcement: Polyester Yarn
Usage: High Pressure Air Sprayer, Air Compressor, Pneumatic Tools And Painting
Safety Factor: 3:1
Temperature: -10℃ To 40℃
| Part No | Size | Inner Diameter | Outer Diameter | Weight | Work Pressure | Length | |
| inch | mm | mm | kg/m | bar | psi | meters/roll | |
| FSPS0506 | 1/4" | 6.5 | 12 | 0.11 | 40 | 600 | 15/20/30/50/100 |
| FSPS0508 | 5/16" | 8.5 | 14 | 0.13 | 40 | 600 | 15/20/30/50/100 |
| FSPS0512 | 1/2" | 12 | 18 | 0.19 | 40 | 600 | 15/20/30/50/100 |
| FSPS0519 | 3/4" | 19 | 27 | 0.39 | 40 | 600 | 15/20/30/50 |
