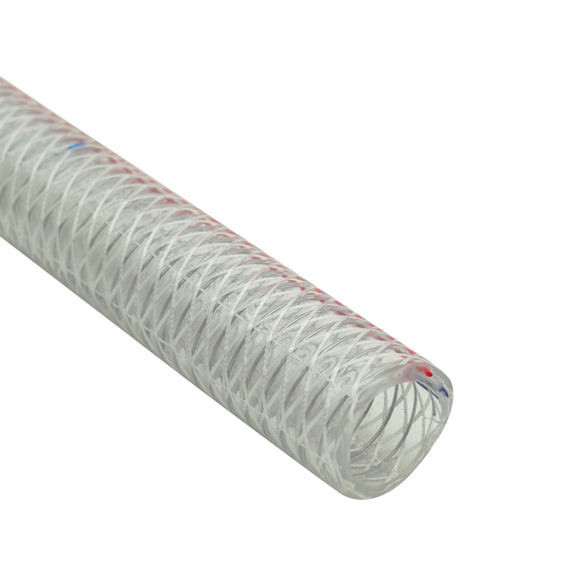

PVC Steel Spiral Hose
Current Position - Farsion - Products - PVC Steel Spiral Hose
Composite PVC Flexible Hose
Construction: Transparent PVC Tube, Anti Abrasion And UV resistant
Reinforcement: Steel Wire Spiral And High DensityYarn In Middle
Usage: Water Delivery And Suction Discharge
Safety Factor: 3:1
Temperature: -10℃ To 40℃
Reinforcement: Steel Wire Spiral And High DensityYarn In Middle
Usage: Water Delivery And Suction Discharge
Safety Factor: 3:1
Temperature: -10℃ To 40℃
| Part No | Size | Inner Diameter | Outer Diameter | Thickness | Weight | Work Pressure | Length | |
| inch | mm | mm | mm | kg/m | bar | psi | meters/roll | |
| FSCF019 | 3/4" | 19 | 26 | 3.5 | 0.40 | 8 | 120 | 15/20/30/50 |
| FSCF025 | 1" | 25 | 32 | 3.5 | 0.50 | 7 | 105 | 15/20/30/50 |
| FSCF032 | 1 1/4" | 32 | 40 | 4.0 | 0.70 | 7 | 105 | 15/20/30/50 |
| FSCF038 | 1 1/2" | 38 | 46 | 4.0 | 0.80 | 7 | 105 | 15/20/30/50 |
| FSCF050 | 2" | 51 | 60 | 4.5 | 1.30 | 6 | 90 | 15/20/30/50 |
| FSCF063 | 2 1/2" | 64 | 76 | 6.0 | 2.16 | 6 | 90 | 15/20/30/50 |
| FSCF075 | 3" | 76 | 89 | 6.5 | 2.50 | 5 | 75 | 15/20/30/50 |
| FSCF100 | 4" | 102 | 116 | 7.0 | 4.00 | 5 | 75 | 15/20/30 |
