Classification
PVC Steel Spiral Hose
Current Position - Farsion - Products - PVC Steel Spiral Hose

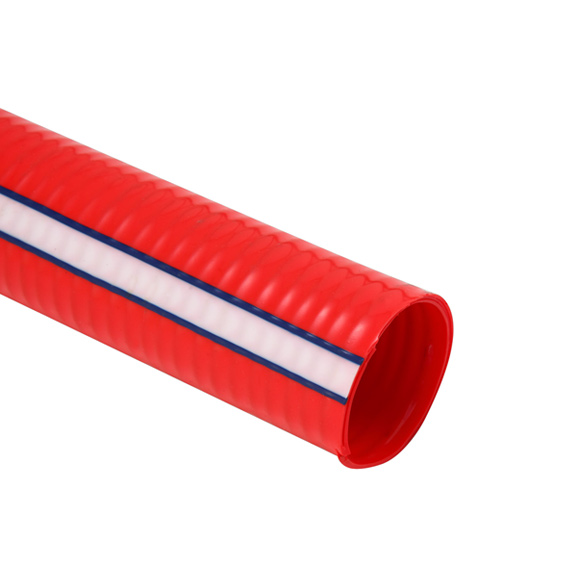

PVC Helix Steel Wire Hose
Construction: Solid Red Or Yellow PVC Tube, Anti Abrasion, Ozone And UV resistant
Reinforcement: Steel Wire Spiral In Middle
Usage: Water Delivery And Suction Discharge
Safety Factor: 3:1
Temperature:-10℃ To 40℃
Reinforcement: Steel Wire Spiral In Middle
Usage: Water Delivery And Suction Discharge
Safety Factor: 3:1
Temperature:-10℃ To 40℃
| Part No | Size | Inner Diameter | Outer Diameter | Thickness | Weight | Length |
| inch | mm | mm | mm | kg/m | meters/roll | |
| FSHS025 | 1" | 25 | 33 | 4.0 | 0.55 | 20/30/50 |
| FSHS032 | 1 1/4" | 32 | 40 | 4.0 | 0.70 | 20/30/50 |
| FSHS038 | 1 1/2" | 38 | 48 | 5.0 | 1.00 | 20/30/50 |
| FSHS051 | 2" | 51 | 61 | 5.0 | 1.40 | 20/30/50 |
| FSHS064 | 2 1/2" | 64 | 76 | 6.0 | 2.10 | 20/30/50 |
| FSHS076 | 3" | 76 | 88 | 6.0 | 2.30 | 20/30/50 |
| FSHS102 | 4" | 102 | 116 | 7.0 | 4.00 | 20/30 |
