PVC Steel Spiral Hose
Current Position - Farsion - Products - PVC Steel Spiral Hose

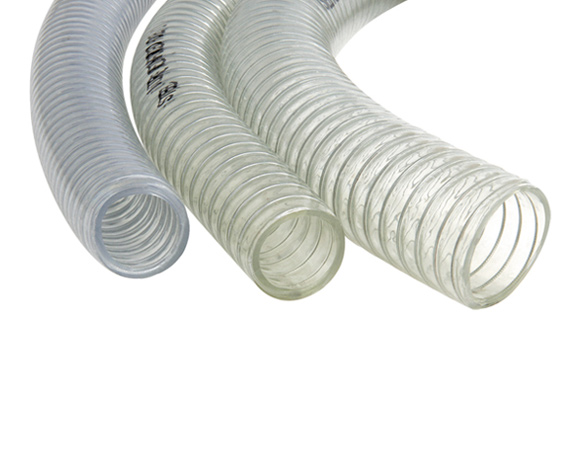

PVC Steel Spiral Hose
Construction: Transparent PVC Tube, Anti Abrasion And UV resistant
Reinforcement: Steel Wire Spiral In Middle
Usage: Water Delivery And Suction Discharge
Safety Factor: 3:1
Temperature: -10℃ To 40℃
Reinforcement: Steel Wire Spiral In Middle
Usage: Water Delivery And Suction Discharge
Safety Factor: 3:1
Temperature: -10℃ To 40℃
| Part No | Size | Inner Diameter | Outer Diameter | Thickness | Weight | Work Pressure | Length | |
| inch | mm | mm | mm | kg/m | bar | psi | meters/roll | |
| FSRS012 | 1/2" | 12 | 18 | 3.0 | 0.20 | 6 | 90 | 15/20/30/50/100 |
| FSRS016 | 5/8" | 16 | 20 | 2.0 | 0.20 | 6 | 90 | 15/20/30/50/100 |
| FSRS019 | 3/4" | 19 | 24 | 2.5 | 0.23 | 6 | 90 | 15/20/30/50/100 |
| FSRS025 | 1" | 25 | 30 | 2.5 | 0.33 | 5 | 75 | 15/20/30/50/100 |
| FSRS032 | 1 1/4" | 32 | 37 | 2.5 | 0.41 | 5 | 75 | 15/20/30/50/100 |
| FSRS038 | 1 1/2" | 38 | 44 | 3.0 | 0.60 | 4 | 60 | 15/20/30/50 |
| FSRS051 | 2" | 51 | 57 | 3.0 | 0.90 | 4 | 60 | 15/20/30/50 |
| FSRS064 | 2 1/2" | 64 | 72 | 4.0 | 1.50 | 4 | 60 | 15/20/30/50 |
| FSRS076 | 3" | 76 | 85 | 4.5 | 1.80 | 3 | 45 | 15/20/30/50 |
| FSRS102 | 4" | 102 | 112 | 5.0 | 3.00 | 3 | 45 | 15/20/30 |
| FSRS125 | 5" | 127 | 139 | 6.0 | 4.00 | 3 | 45 | 15/20/30 |
| FSRS150 | 6" | 152 | 166 | 7.0 | 6.00 | 3 | 45 | 15/20/30 |
| FSRS200 | 8" | 204 | 224 | 10.0 | 12.00 | 3 | 45 | 15/20/30 |
