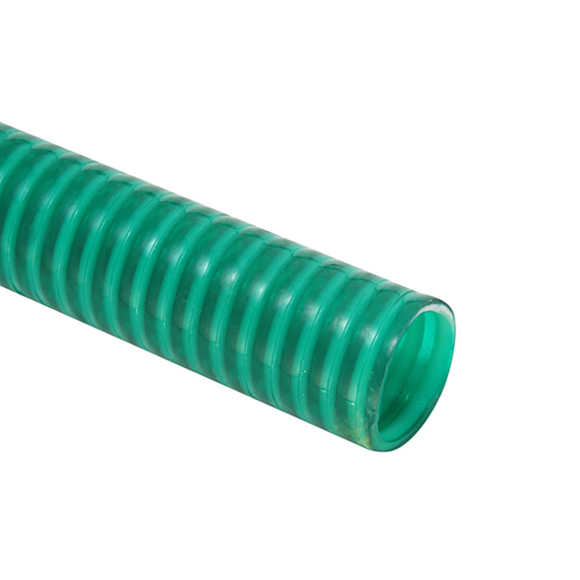

PVC Suction Hose-Light Duty
Construction: Transparent Green PVC Tube,Smooth Surface
Reinforcement: White PVC Rib Spiral
Usage: Water Delivery And Suction Discharge
Safety Factor: 3:1
Temperature:-10℃ To 40℃
Reinforcement: White PVC Rib Spiral
Usage: Water Delivery And Suction Discharge
Safety Factor: 3:1
Temperature:-10℃ To 40℃
| Part No | Size | Inner Diameter | Outer Diameter | Thickness | Weight | Length |
| inch | mm | mm | mm | kg/m | meters/roll | |
| FSSH01012 | 1/2" | 12 | 16 | 2.0 | 0.13 | 6/15/20/30 |
| FSSH01019 | 3/4" | 19 | 23 | 2.0 | 0.18 | 6/15/20/30 |
| FSSH01025 | 1" | 25 | 29 | 2.0 | 0.23 | 6/15/20/30 |
| FSSH01032 | 1 1/4" | 32 | 37 | 2.5 | 0.38 | 6/15/20/30 |
| FSSH01038 | 1 1/2" | 38 | 43 | 2.5 | 0.44 | 6/15/20/30 |
| FSSH01051 | 2" | 51 | 57 | 3.0 | 0.70 | 6/15/20/30 |
| FSSH01064 | 2 1/2" | 64 | 70 | 3.0 | 0.90 | 6/15/20/30 |
| FSSH01076 | 3" | 76 | 83 | 3.5 | 1.20 | 6/15/20/30 |
| FSSH01102 | 4" | 102 | 110 | 4.0 | 1.70 | 6/15/20/30 |
| FSSH01125 | 5" | 127 | 136 | 4.5 | 2.60 | 6/15/20/30 |
| FSSH01150 | 6" | 152 | 162 | 5.0 | 3.50 | 6/15/20/30 |
| FSSH01200 | 8" | 204 | 216 | 6.0 | 5.10 | 6/15/20 |
