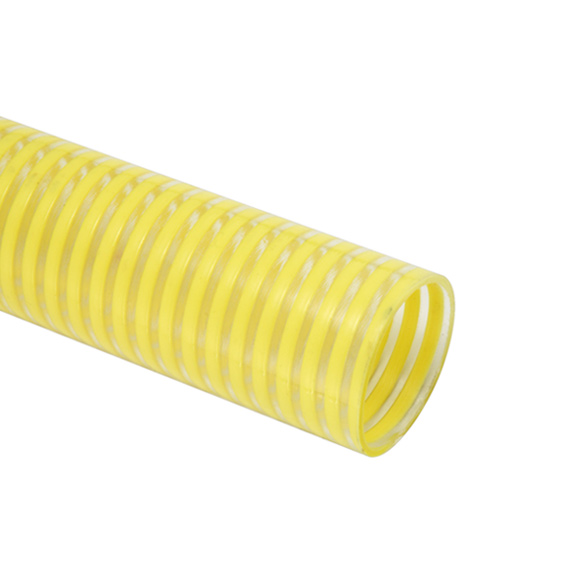

PVC Suction Hose-Standard Duty
Construction: Transparent Yellow PVC Tube,Smooth Surface
Reinforcement: White PVC Rib Spiral
Usage: Water Delivery And Suction Discharge
Safety Factor: 3:1
Temperature: -10℃ To 40℃
Reinforcement: White PVC Rib Spiral
Usage: Water Delivery And Suction Discharge
Safety Factor: 3:1
Temperature: -10℃ To 40℃
| Part No | Size | Inner Diameter | Outer Diameter | Thickness | Weight | Length |
| inch | mm | mm | mm | kg/m | meters/roll | |
| FSSH02012 | 1/2" | 12 | 18 | 3.0 | 0.18 | 6/15/20/30 |
| FSSH02019 | 3/4" | 19 | 25 | 3.0 | 0.28 | 6/15/20/30 |
| FSSH02025 | 1" | 25 | 31 | 3.0 | 0.35 | 6/15/20/30 |
| FSSH02032 | 1 1/4" | 32 | 38 | 3.0 | 0.46 | 6/15/20/30 |
| FSSH02038 | 1 1/2" | 38 | 44 | 3.0 | 0.53 | 6/15/20/30 |
| FSSH02051 | 2" | 51 | 58 | 3.5 | 0.82 | 6/15/20/30 |
| FSSH02064 | 2 1/2" | 64 | 71 | 3.5 | 1.04 | 6/15/20/30 |
| FSSH02076 | 3" | 76 | 84 | 4.0 | 1.40 | 6/15/20/30 |
| FSSH02102 | 4" | 102 | 111 | 4.5 | 1.90 | 6/15/20/30 |
| FSSH02125 | 5" | 127 | 137 | 5.0 | 2.90 | 6/15/20/30 |
| FSSH02150 | 6" | 152 | 164 | 6.0 | 4.10 | 6/15/20/30 |
| FSSH02200 | 8" | 204 | 218 | 7.0 | 5.90 | 6/15/20 |
