FS40P

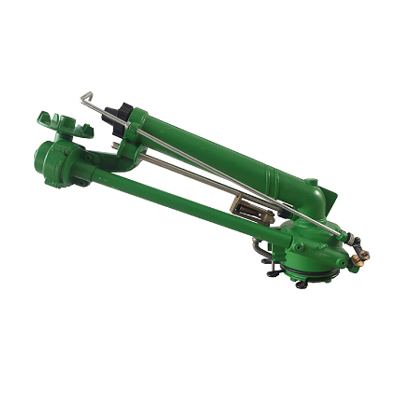

FS40P Worm Gear Water Sprinkler
Inlet Diameter: 1.5"Female ThreadNozzle Size: 12mm, 14mm, 16mm, 18mm and 20mm
Work Pressure: 0.2-0.5MPA
Short Distance: 22-41Meters
Rotation Angle: 0-360 Degree
| U Nozzle Size |
P Pressure |
Q Flow Rate |
G Shoot Distance |
| MM | Kgf/CM2 | M3/H | Meters |
| 12 | 2 | 9.5 | 22.0 |
| 3 | 11.6 | 25.0 | |
| 4 | 13.4 | 28.0 | |
| 5 | 15.1 | 31.0 | |
| 14 | 2 | 11.7 | 24.0 |
| 3 | 15.0 | 27.0 | |
| 4 | 17.4 | 30.0 | |
| 5 | 19.4 | 33.0 | |
| 16 | 2 | 15.4 | 26.0 |
| 3 | 18.9 | 29.0 | |
| 4 | 21.8 | 32.0 | |
| 5 | 24.3 | 35.0 | |
| 18 | 2 | 19.0 | 28.0 |
| 3 | 24.2 | 31.0 | |
| 4 | 28.3 | 34.0 | |
| 5 | 31.3 | 37.0 | |
| 20 | 2 | 21.2 | 30.0 |
| 3 | 29.4 | 33.0 | |
| 4 | 34.3 | 37.0 | |
| 5 | 37.0 | 41.0 |
