FS-50LPYC-24

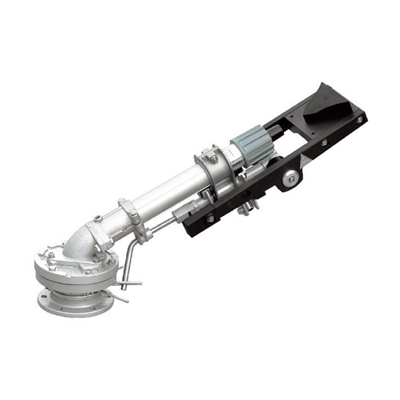

FS-50LPYC-24 Water Sprinkler
Inlet Diameter: 2"Flange ConnectionNozzle Size: 20mm, 22mm, 24mm, 26mm, 28mm and 30mm
Work Pressure: 0.2-0.7MPA
Short Distance: 31-63MMeters
Rotation Angle: 0-360 Degree
Dip Angle: 24 Degree
| U Nozzle Size |
P Pressure |
Q Flow Rate |
G Shoot Distance |
| MM | Kgf/CM2 | M3/H | Meters |
| 20 | 2 | 22.2 | 31.0 |
| 3 | 26.7 | 36.0 | |
| 4 | 31.5 | 41.2 | |
| 5 | 35.1 | 44.0 | |
| 6 | 38.1 | 47.1 | |
| 7 | 42.2 | 49.0 | |
| 22 | 2 | 26.8 | 33 |
| 3 | 33.5 | 37.5 | |
| 4 | 37.9 | 43.0 | |
| 5 | 42.5 | 46.0 | |
| 6 | 46.5 | 49.5 | |
| 7 | 49.8 | 52.0 | |
| 24 | 2 | 31.8 | 34.0 |
| 3 | 39.5 | 40.0 | |
| 4 | 45.3 | 44.3 | |
| 5 | 50.3 | 48.0 | |
| 6 | 54.6 | 52.0 | |
| 7 | 58.8 | 55.2 | |
| 26 | 2 | 37.5 | 36.6 |
| 3 | 45.7 | 42.0 | |
| 4 | 52.3 | 47.0 | |
| 5 | 58.9 | 51.5 | |
| 6 | 64.5 | 55.0 | |
| 7 | 69 | 58.0 | |
| 28 | 2 | 43.2 | 37.0 |
| 3 | 52.7 | 43.0 | |
| 4 | 61.1 | 49.0 | |
| 5 | 67.8 | 53.2 | |
| 6 | 74.6 | 57.0 | |
| 7 | 81 | 60.0 | |
| 30 | 2 | 49.3 | 39.0 |
| 3 | 60.5 | 45.0 | |
| 4 | 70 | 51.0 | |
| 5 | 78 | 55.8 | |
| 6 | 85.7 | 59.0 | |
| 7 | 92.8 | 63.5 |
