FS-50PYC-24

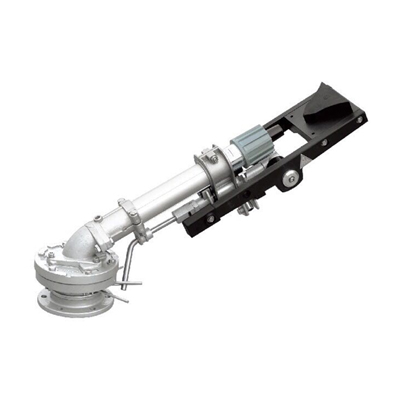

FS-50PYC-24 Water Sprinkler
Inlet Diameter: 2"Flange ConnectionNozzle Size: 16mm, 18mm, 20mm, 22mm and 24mm
Work Pressure: 0.2-0.7MPA
Short Distance: 27-55Meters
Rotation Angle: 0-360 Degree
Dip Angle: 24 Degree
| U Nozzle Size |
P Pressure |
Q Flow Rate |
G Shoot Distance |
| MM | Kgf/CM2 | M3/H | Meters |
| 16 | 2 | 14.2 | 27.0 |
| 3 | 17.5 | 32.2 | |
| 4 | 19.9 | 36.0 | |
| 5 | 22.8 | 39.0 | |
| 6 | 24.7 | 42.6 | |
| 7 | 26.6 | 44.1 | |
| 18 | 2 | 17.9 | 29.0 |
| 3 | 21.9 | 34.0 | |
| 4 | 25.5 | 38.4 | |
| 5 | 28.2 | 42.0 | |
| 6 | 30.9 | 45.0 | |
| 7 | 33.2 | 47.2 | |
| 20 | 2 | 22.2 | 31.0 |
| 3 | 26.7 | 36.0 | |
| 4 | 31.5 | 41.2 | |
| 5 | 35.1 | 44.0 | |
| 6 | 38.1 | 47.1 | |
| 7 | 42.2 | 49.0 | |
| 22 | 2 | 26.8 | 33.0 |
| 3 | 33.5 | 37.5 | |
| 4 | 37.9 | 43.0 | |
| 5 | 42.5 | 46.0 | |
| 6 | 46.5 | 49.5 | |
| 7 | 49.8 | 52.0 | |
| 24 | 2 | 31.8 | 34.0 |
| 3 | 39.5 | 40.0 | |
| 4 | 45.3 | 44.3 | |
| 5 | 50.3 | 48.0 | |
| 6 | 54.6 | 52.0 | |
| 7 | 58.8 | 55.2 |
