FS-50PYC-44

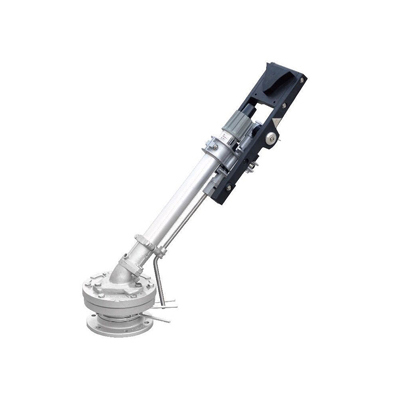

FS-50PYC-44 Water Sprinkler
Inlet Diameter: 2"Flange ConnectionNozzle Size: 16mm, 18mm, 20mm, 22mm and 24mm
Work Pressure: 0.3-0.8MPA
Short Distance: 31-53Meters
Rotation Angle: 0-360 Degree
Dip Angle: 44 Degree
| U Nozzle Size |
P Pressure |
Q Flow Rate |
G Shoot Distance |
| MM | Kgf/CM2 | M3/H | Meters |
| 16 | 3 | 17.5 | 31.0 |
| 4 | 19.9 | 34.0 | |
| 5 | 22.8 | 36.0 | |
| 6 | 24.7 | 39.0 | |
| 7 | 26.6 | 41.0 | |
| 8 | 28.5 | 42.0 | |
| 18 | 3 | 21.9 | 33 |
| 4 | 25.5 | 36.0 | |
| 5 | 28.2 | 39 | |
| 6 | 30.9 | 41.0 | |
| 7 | 33.2 | 43.0 | |
| 8 | 35.8 | 45 | |
| 20 | 3 | 25.8 | 35.0 |
| 4 | 32.3 | 39.0 | |
| 5 | 35.1 | 41.0 | |
| 6 | 38.5 | 44.0 | |
| 7 | 41.5 | 46.0 | |
| 8 | 44.5 | 48.0 | |
| 22 | 3 | 33.5 | 38.0 |
| 4 | 37.9 | 41 | |
| 5 | 42.5 | 44.0 | |
| 6 | 46.5 | 46.0 | |
| 7 | 49.8 | 48 | |
| 8 | 53.2 | 50.0 | |
| 24 | 3 | 39.5 | 40.0 |
| 4 | 45.3 | 43.6 | |
| 5 | 50.3 | 46.0 | |
| 6 | 54.6 | 48.0 | |
| 7 | 58.8 | 51.5 | |
| 8 | 63.3 | 53.0 |
