FS70H

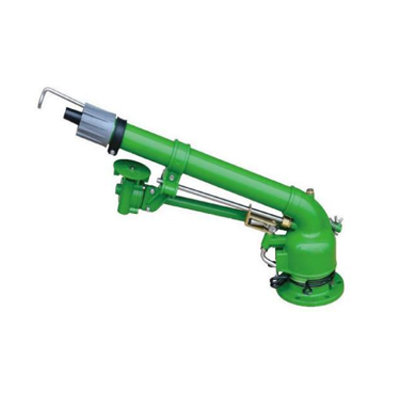

FS70H Worm Gear Water Sprinkler
Inlet Diameter: 2"Flange ConnectionNozzle Size: 16mm, 18mm, 20mm, 22mm, 24mm and 26mm
Work Pressure: 0.2-0.7MPA
Short Distance: 26-53Meters
Rotation Angle: 0-360 Degree
| U Nozzle Size |
P Pressure |
Q Flow Rate |
G Shoot Distance |
| MM | Kgf/CM2 | M3/H | Meters |
| 16 | 2 | 17.8 | 26.0 |
| 3 | 21.8 | 28.0 | |
| 4 | 25.2 | 32.0 | |
| 5 | 28.1 | 35.0 | |
| 18/td> | 2 | 27.1 | 32.0 |
| 3 | 31.6 | 35.0 | |
| 4 | 35.0 | 38.0 | |
| 5 | 38.7 | 41.0 | |
| 20 | 2 | 31.2 | 36.0 |
| 3 | 36.1 | 40.0 | |
| 4 | 40.3 | 43.0 | |
| 5 | 44.2 | 46.0 | |
| 22 | 2 | 42.2 | 41.0 |
| 3 | 44.8 | 43.0 | |
| 4 | 47.3 | 45.0 | |
| 5 | 51.8 | 48.0 | |
| 24 | 2 | 49.2 | 43.0 |
| 3 | 52.2 | 45.0 | |
| 4 | 55.0 | 47.0 | |
| 5 | 60.3 | 50.0 | |
| 26 | 2 | 56.7 | 45.0 |
| 3 | 63.4 | 48.0 | |
| 4 | 69.6 | 51.0 | |
| 5 | 75.1 | 53.0 |
