FS80P

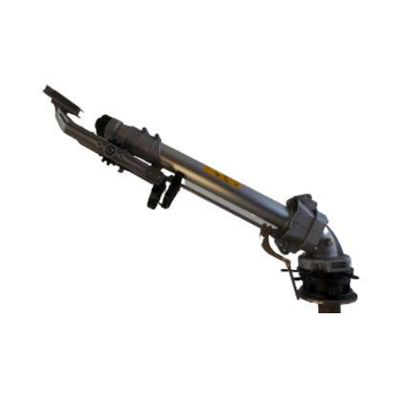

FS-80P Water Sprinkler
Inlet Diameter: 80mm Flange ConnectionNozzle Size: 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm and 40mm
Work Pressure: 0.15-0.8MPA
Short Distance: 23-80Meters
Rotation Angle: 0-360 Degree
Dip Angle: 16-46 Degree
| U Nozzle Size |
P Pressure |
Q Flow Rate |
G Shoot Distance |
| MM | Kgf/CM2 | M3/H | Meters |
| 22 | 3 | 31.3 | 23.0 |
| 4 | 36.2 | 25.0 | |
| 5 | 40.5 | 29.0 | |
| 6 | 44.4 | 32.0 | |
| 24 | 3 | 37.3 | 27 |
| 4 | 43.2 | 32.0 | |
| 5 | 48.3 | 36.0 | |
| 6 | 52.9 | 39.0 | |
| 26 | 3 | 43.9 | 29.0 |
| 4 | 50.7 | 33.0 | |
| 5 | 56.7 | 37.0 | |
| 6 | 62.2 | 41.0 | |
| 28 | 3 | 50.9 | 30.0 |
| 4 | 58.8 | 35.0 | |
| 5 | 65.7 | 39.0 | |
| 6 | 72.1 | 43.0 | |
| 30 | 3 | 58.4 | 37.0 |
| 4 | 67.6 | 41.0 | |
| 5 | 75.6 | 45.0 | |
| 6 | 82.8 | 48.0 | |
| 32 | 4 | 76.9 | 54.0 |
| 5 | 85.9 | 58.0 | |
| 6 | 94.2 | 62.0 | |
| 7 | 101.6 | 66.0 | |
| 34 | 5 | 97.1 | 59.0 |
| 6 | 106.4 | 64.0 | |
| 7 | 114.8 | 68.0 | |
| 8 | 122.8 | 72.0 | |
| 36 | 5 | 108.8 | 61.0 |
| 6 | 119.3 | 66.0 | |
| 7 | 128.6 | 70.0 | |
| 8 | 137.7 | 74.0 | |
| 38 | 5 | 121.3 | 63.0 |
| 6 | 132.9 | 68.0 | |
| 7 | 143.4 | 72.0 | |
| 8 | 153.5 | 76.0 | |
| 40 | 5 | 134.4 | 66.0 |
| 6 | 147.3 | 70.0 | |
| 7 | 158.9 | 76.0 | |
| 8 | 174.2 | 80.0 |
